Description
The ALS Tire Pro is a complete wireless tire temperature monitoring solution. 8 temperature channels / tire, sampled at 50Hz with wireless connectivity for a simple installation process.
- 8 temperature channels / tire. 50Hz refresh rate
- Fully wireless communication. Sensors can be placed anywhere on the car
- Fully compatible with any CAN race dash or logger.
- Up to 15 hours of active use. Magnetic connector offers easy recharging with sensors still installed on car.
Contents:

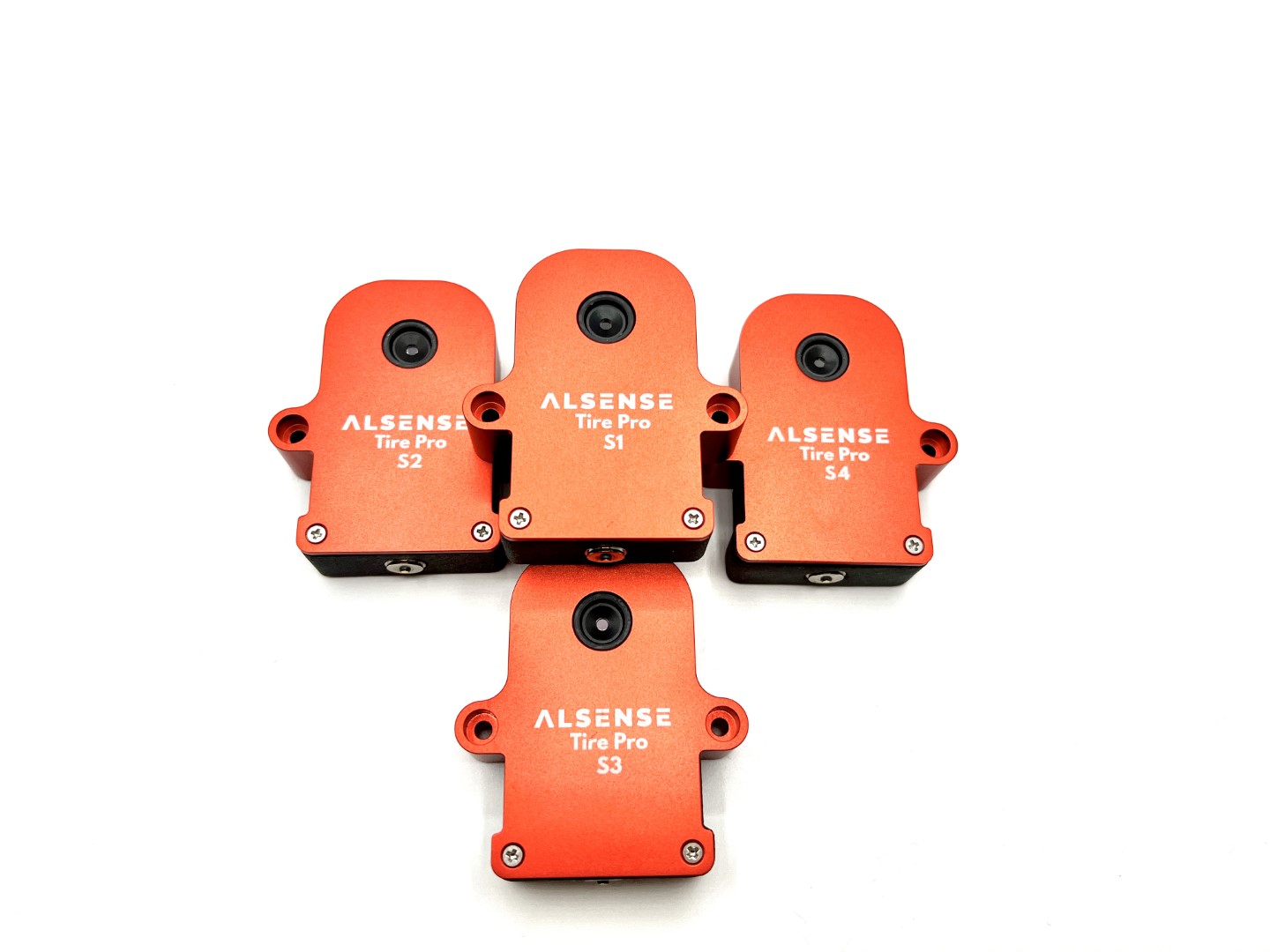

4x wireless tire temperature sensors (ALS_TP_SENS)
1x wireless receiver with CAN connectivity (ALS_RCV)
4x charging cables
Documentation and required accessories
Carrying case
[OPTIONAL] Germanium Protection Lenses
Specifications
Temperature Range: -40 to +1500°C
Channels: 8 or 4 (configurable)
Accuracy: ± 1% up to 150 °C
FOV: 110° x 6°
Refresh Rate: 1-50Hz (configurable)
Battery: 250mAh (built-in charger)
Autonomy: 15 Hrs (track use)
Dimensions: 64.0 x 42.0 x 17.5 mm
Weight: 57g
Material: Aluminum / Polyamide
IP Rating: IP65
Operating Temperature: -40 to +85°C
Receiver
Supply Voltage: 5 – 20V
Supply Current: 50mA
Connector: ASL006-05PN-HE
CAN Standard: 2.0A (11-bit identifier) or 2.0B
Bit Rate: 500 Kbps (default) / 1 Mbps
Byte Order: Big-Endian (MSB first)
Programmable Parameters: Base CAN Id, Refresh Rate, Emmisivity, Bit Rate
